Rubber Cleaning & Waxing Sheets

The mold cleaning rubber sheet is the most common and secure semiconductor mold cleaning solution.
Mold equipment produces stains and residues after a certain amount of production.
If these are left unattended, problems with the production products may gradually occur and defects may occur.
By performing cleaning and coating processes between production processes, the highest quality products can be ensured.
Rubber sheet series is highly clean, odorless and smoke-free and does not damage the mold.
Minimize downtime so you don't slow down your production cycle.

TYPES K-C series (Clean rubber sheet) K-W series (Wax rubber sheet)
ODR ML (Ibf-ic) 2 ~ 15 1 ~ 10
MH (Ibf-in) 10 ~ 40 5 ~ 30
Tc10 (sec) 20 ~ 100 20 ~ 100
Tc90 (sec) 150 ~ 300 150 ~ 300
Specific gravity 1.0 ~ 1.30 1.0 ~ 1.2
Recommended number of shots 3 ~ 5 1 ~ 2
Mold temperature (℃) 160 ~ 200 160 ~ 200
Molding pressure (kg/㎠) 20 ~ 150 20 ~ 150
Optimum cure time (sec) 200 ~ 360 200 ~ 360
Smell and Smoke Little Little
The thickness, width, and length can be adjusted according to the user's request.

Mold cleaning process

Strip Alignment
Press (Cleaning)
Desorption
Mold after cleaning
Dummy

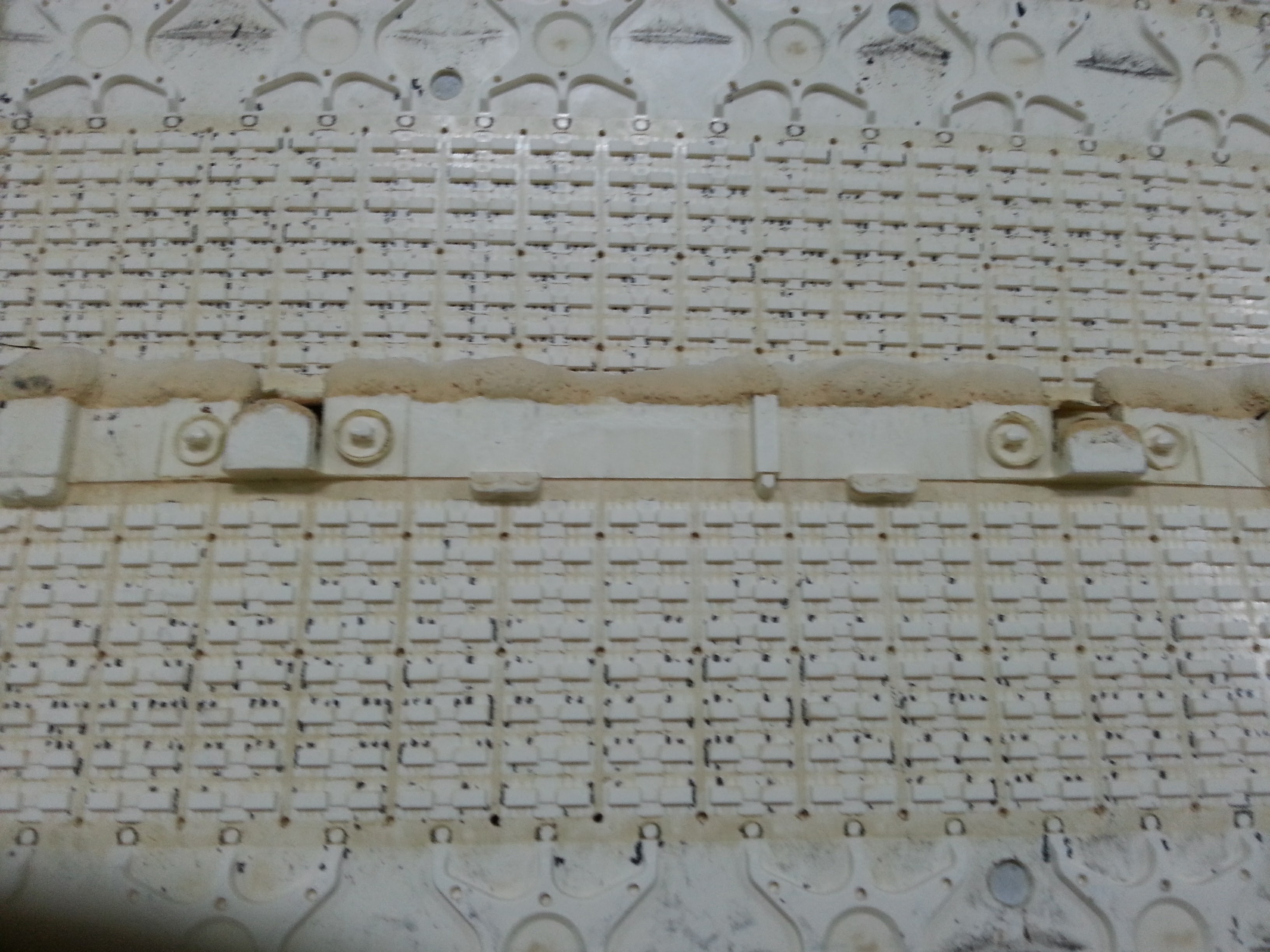

Post-process pictures
